Datalogic Scanner Cable For Verifone Ruby 2, CI, C18 Topaz, XL COM8 RJ50 to RJ45

This cable is ONLY compatible with Datalogic brand scanners , such as the models listed below, when connected to a compatible. Verifone POS register, like the Ruby2, RubyCI, C18 and Topaz XL. DOES NOT fit S y m b o l, Z e b r a, or M o t o r o l a scanners and should NOT be used with unlisted point of sales systems. Review our alternative Verifone compatible scanner cable listing. If your scanner has these other brands.

Your Datalogic brand bar code scanner cable must have either of the following part numbers on the label on the cable itself (as seen in the second photo). ONLY fits Datalogic brand scanners that require part number 90A051939 or CAB-327 SH-3630.

If your existing part number doesn't match, then this is not the correct cable. There are other cables with a CAB-327 prefix, so please be sure the part number includes SH-3630 as well. This is not an exhaustive list, but these and other Datalogic brand scanner and cradle models with the common 10-pin male end may work when connected to compatible Verifone terminals with the correct emulation mode.

Gryphon: GD4400, GD4430, GD4500, GD4590, GBT4400. QuickScan: D2400, QBT2400, QM2400, QD2131, QD2430.

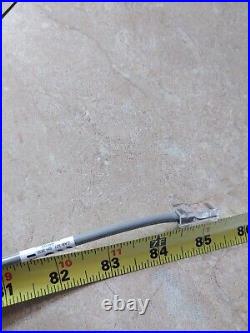

Verifone COM8 Port Must Provide Power. This cable is 84 inches long.

It has a 10-pin RJ50 (RS-232 serial) male end that goes to the Datalogic brand scanner and the other RJ45 8-pin male connector, which looks similar to an ethernet end, goes to a serial COM port on the back of the Verifone terminal. Typically this RJ45 end goes to the COM8 port on the Verifone terminal. The COM port must be configured to provide the proper output voltage to the scanner, which may require changing settings in the terminal's BIOS. We'll typically respond within hours, if not minutes. This item will be loose packed with no consumer packaging or instructions included.
